Swift Springs - Bump Springs

Highest Measurable shock stroke in the industry.

Swift linear bump springs offers the highest measurable shock stroke in the industry. Unlike inefficient rubber and foam bump stops, Swift Bump Springs are fatigue and heat resistant.

Our bump springs are an essential upgrade for performance minded individuals yearning to maximize suspension tune ability. And, to keep things simple, our engineers developed a proprietary retainer which seamlessly fits all spring rates.

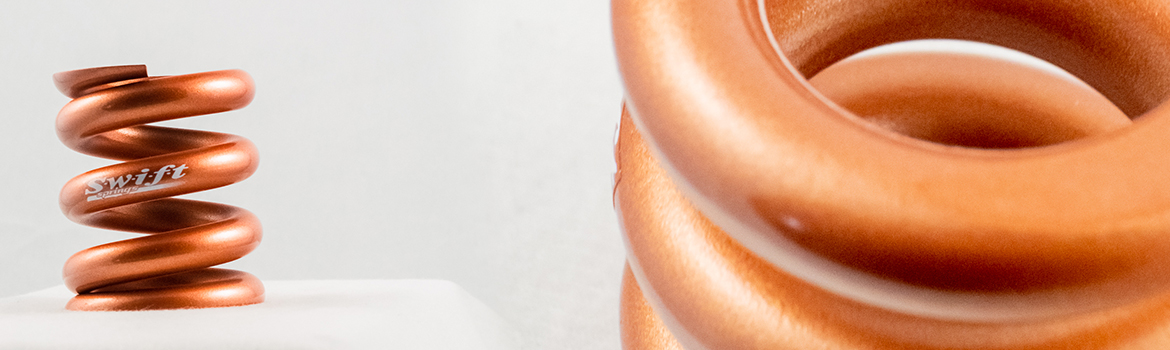

Round Wire Bump Spring

DUE TO CONTINUED ENGINEERING ADVANCES, PRODUCT SPECIFICATION MAY CHANGE WITHOUT NOTICE.

Linear Rate

Part Number
Spring Rate
(lbs/inch)
OD
(inch)
Length
(inch)
Stroke
(inch)
SBS0400
400
2.0
2.25
1.12
SBS0500
500
2.0
2.25
1.27
SBS0600
600
2.0
2.25
1.11
SBS0700
700
2.0
2.25
1.20
SBS0800
800
2.0
2.25
1.01
SBS1000
1000
2.0
2.25
1.00
SBS1200
1200
2.0
2.25
0.89
SBS1400
1400
2.0
2.25
0.83
SBS1600
1600
2.0
2.25
0.76
SBS1800
1800
2.0
2.25
0.87
SBS2000
2000
2.0
2.25
0.84
SBS2500
2500
2.0
2.25
0.73
SBS3000
3000
2.0
2.25
0.72
SBS3500
3500
2.0
2.25
0.76
SBS4000
4000
2.0
2.25
0.71
SBS4500
4500
2.0
2.25
0.65
SBS5000
5000
2.0
2.25
0.62
SBS6000
6000
2.0
2.25
0.50
SBS7000
7000
2.0
2.25
0.49
SBS8000
8000
2.0
2.25
0.53

1.5" Length - Linear Rate

Part Number
Spring Rate
(lbs/inch)
OD
(inch)
Length
(inch)
Stroke
(inch)
SBS0400 SH
400
1.99
1.5
0.73
SBS0500 SH
500
1.99
1.5
0.74
SBS0600 SH
600
1.99
1.5
0.73
SBS5000 SH
5000
1.99
1.5
0.41
SBS6000 SH
6000
1.99
1.5
0.35
SBS7000 SH
7000
1.99
1.5
0.33
SBS8000 SH
8000
1.99
1.5
0.30

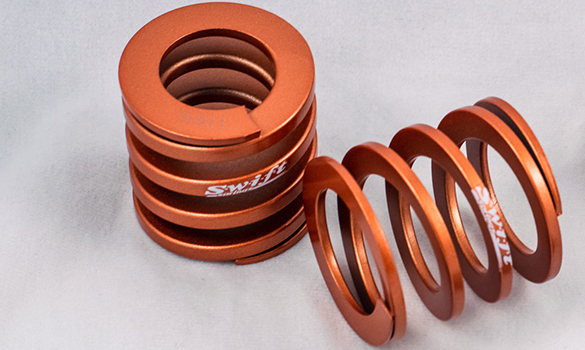

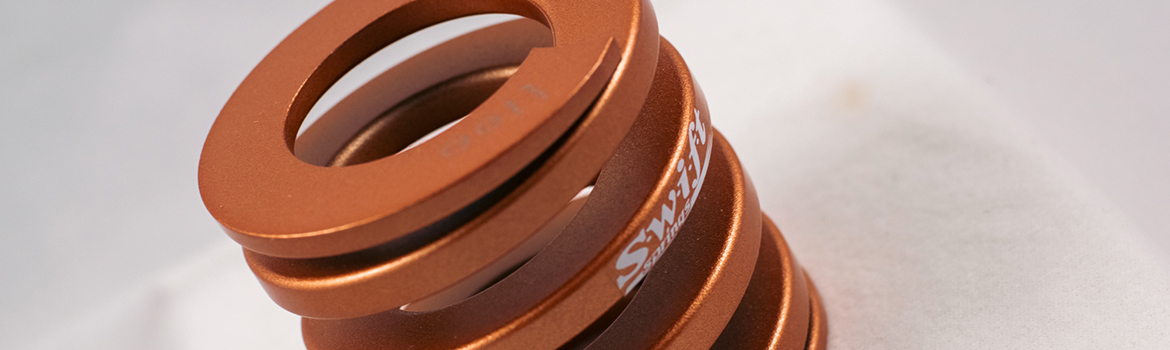

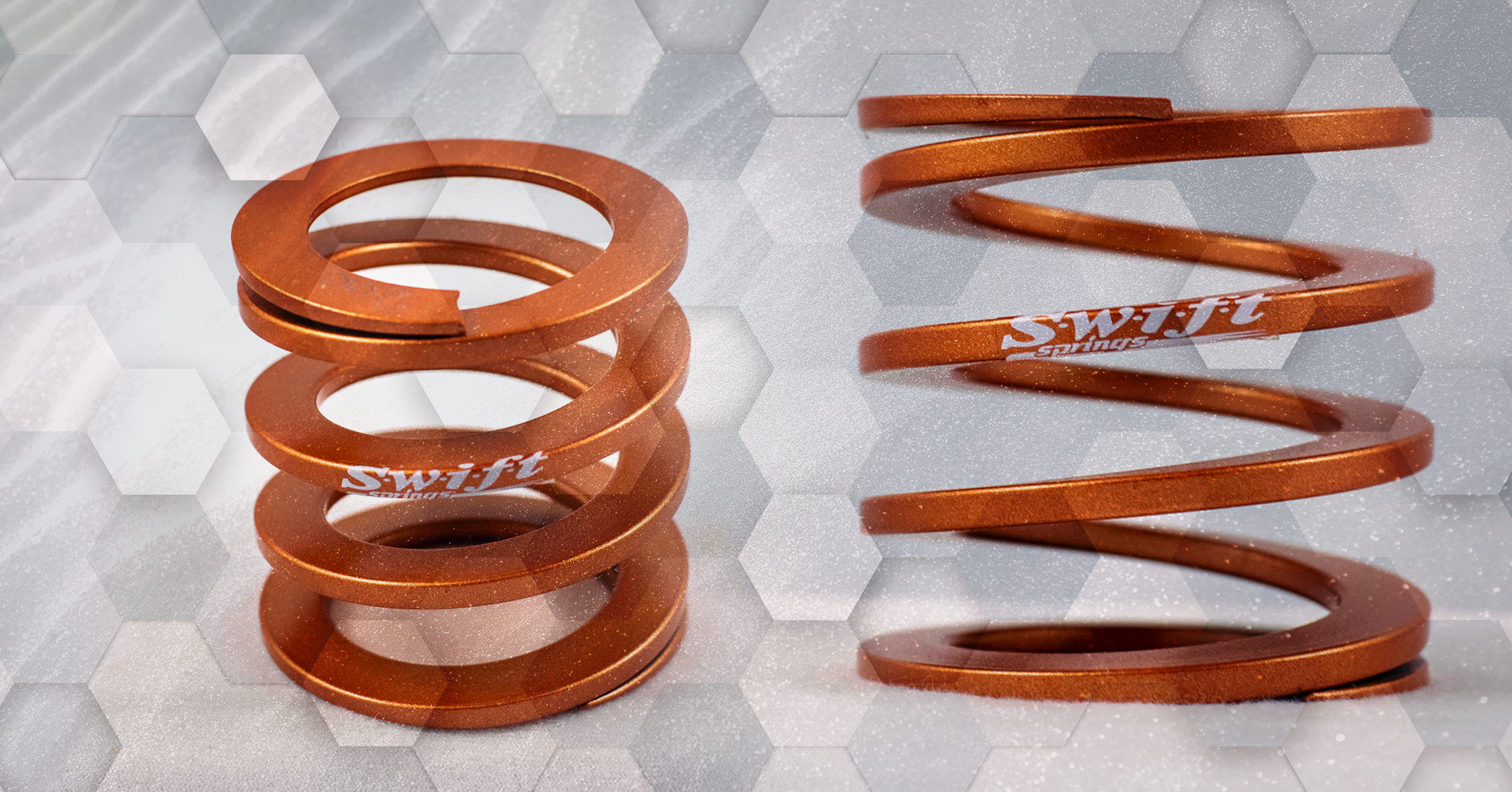

Flat Wire Bump Springs.

Optimized for an even greater amount of shock travel.

Zero Side Shearing.

In order to meet the needs of individuals whom aggressively utilize bump stops, Swift has developed another unique bump spring solution.

Our newly developed flat wire bump spring features zero side shearing upon full compression, and is optimized for an even greater amount of shock travel (compared to Round Wire Springs.)

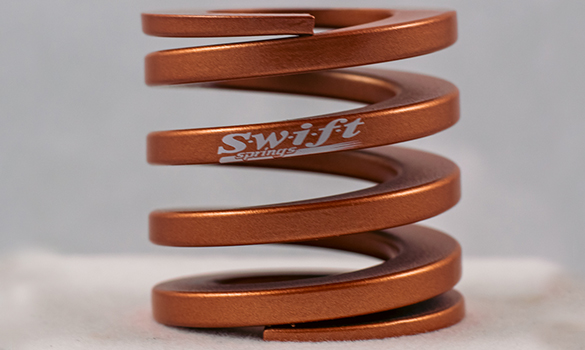

Flat Wire Bump Spring
Flat Wire Bump Spring
Flat Wire Bump Springs

DUE TO CONTINUED ENGINEERING ADVANCES, PRODUCT SPECIFICATION MAY CHANGE WITHOUT NOTICE.

Flat Wire Bump Springs - Linear Rate

Part Number
Spring Rate
(lbs/inch)
OD
(inch)
Length
(inch)
Stroke
(inch)
SBS0200 S
200
2.3
2.25
1.50
SBS0300 S
300
2.3
2.25
1.47
SBS0400 S
400
2.3
2.25
1.35
SBS0500 S
500
2.3
2.25
1.21
SBS0500 MS
500
2.3
2.50
1.43
SBS0600 S
600
2.3
2.25
1.21
SBS0700 S
700
2.3
2.25
1.31
SBS0800 S
800
2.3
2.25
1.12
SBS0900 S
900
2.3
2.25
1.21
SBS0900 LS
900
2.3
4.50
1.76
SBS1000 S
1000
2.3
2.25
1.18
SBS1100 S
1100
2.3
2.25
1.07
SBS1200 S
1200
2.3
2.25
1.13

Flat Wire Bump Springs - Progressive Rate

Part Number
Spring Rate
(lbs/inch)
OD
(inch)
Length
(inch)
Stroke
(inch)
SBS0800 VS
400-800
2.3
3.00
1.58
SBS1000 VS
500-1000
2.3
3.00
1.46
SBS1200 LVS
800-1200
2.3
4.50
1.18

Bump spring Retainers.

Sold Individually.

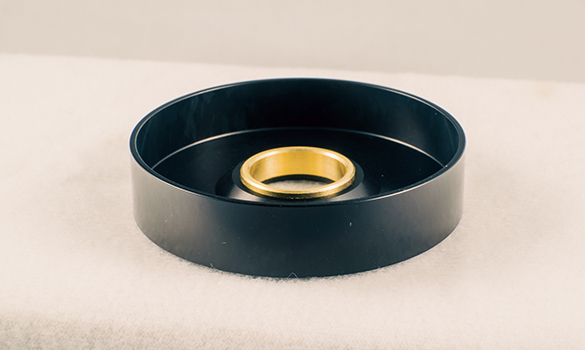

Bump Spring Retainer
Retainer for Round Wire Bump Springs

DUE TO CONTINUED ENGINEERING ADVANCES, PRODUCT SPECIFICATION MAY CHANGE WITHOUT NOTICE.

For Od 2.0" Bump Springs

Part Number
Shaft Diameter
SBR500 B
1/2"
SBR501 B
14mm
SBR625 B
5/8"

For OD 2.3" Flat Wire Bump Springs

Part Number
Shaft Diameter
SBR500 SB
1/2"
SBR551 S
14mm
SBR625 SB
5/8"

Spring Perch Bump Cap
For Od 2.3" Flat Wire Bump Springs

Part Number
Coilover
SBC-PS
Penske
SBC-OS
Ohlins
SBC-F
Fox
SBC-JS
JRI

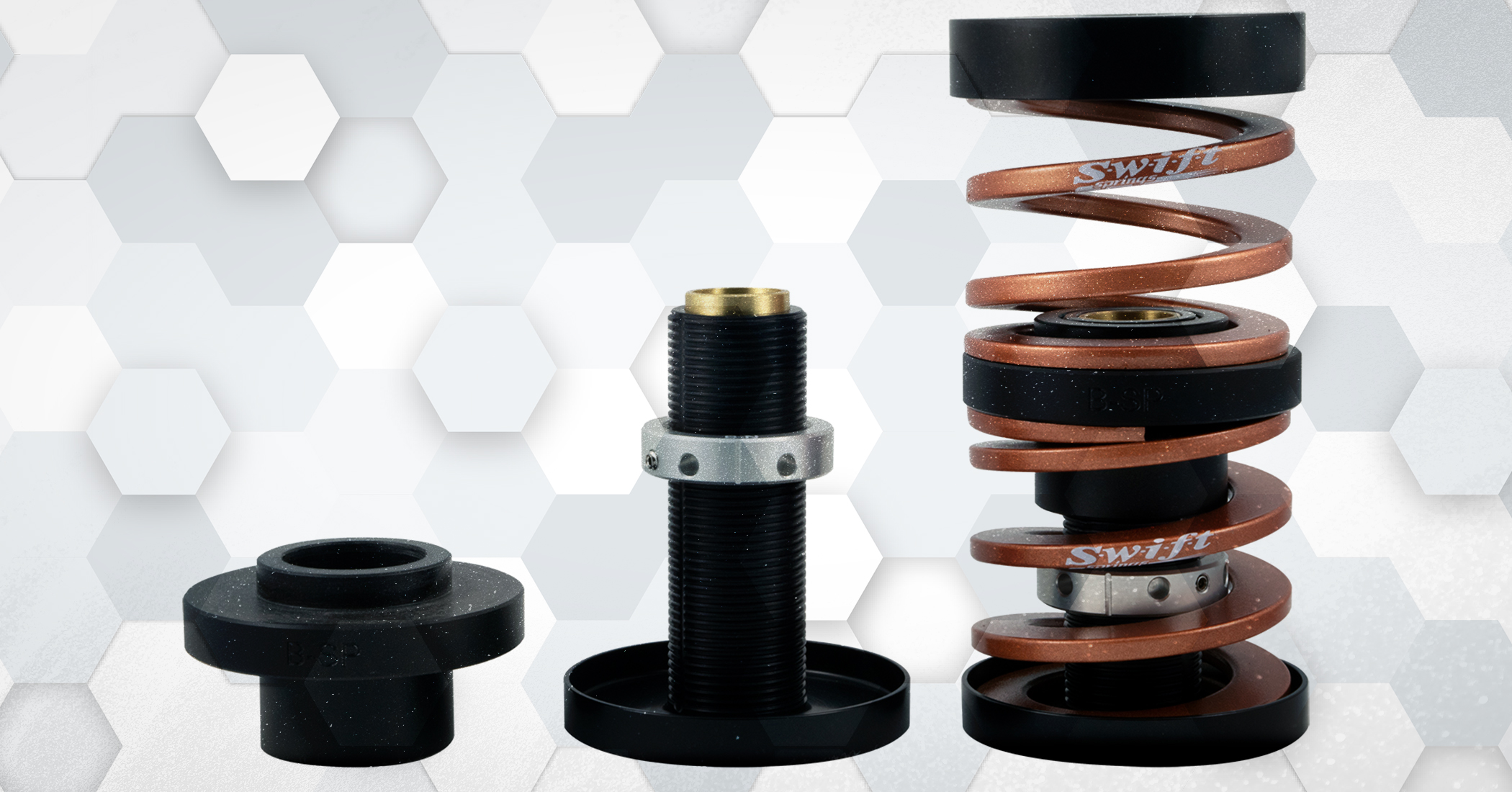

Bump Spring Stacker.

Eliminates spring rubbers.
Progressive & Digressive stacks.
Repeatability unmatched.

Introducing the correct way to stack a bump spring. Our bump spring stackers allow you to create any combination of rate using our flat wire bump springs. Comes with an adjustable lock nut giving you the ability to lock out the lower bump spring at the compression of your choosing allowing for a fully customizable true dual rate bump spring setup.

Included in kit:

-Bump Spring Tower

-Bump Spring Divider

-Lockout Nut

-All Shaft Bushings (6)

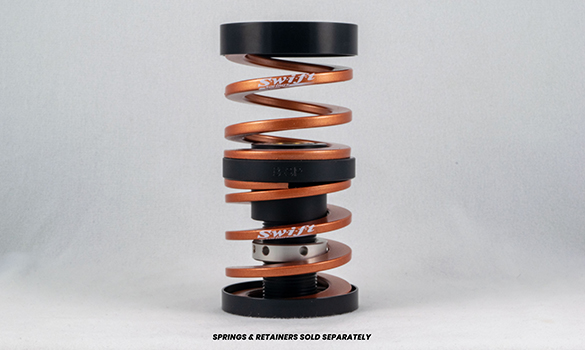

Bump Spring Stacker setup

DUE TO CONTINUED ENGINEERING ADVANCES, PRODUCT SPECIFICATION MAY CHANGE WITHOUT NOTICE.

Bump Spring Stacker

Part Number
Note
BST
1/2", 14mm, & 5/8" Bushings Included
