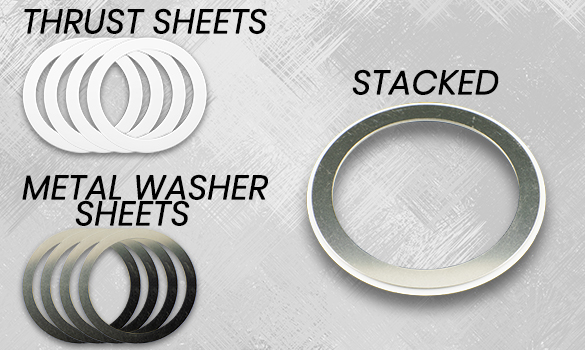

Thrust Sheets.
Thrust Sheets.
Reduce Unwanted Spring Noise. Improve coilover performance.
Reduce Unwanted Spring Noise. Improve Coilover Performance.
Reduce spring noise.
These proprietary self-lubricating sheets will allow your coilover springs to smoothly rotate around the perch under compression. This enables the load on the spring to be more evenly distributed easing the pre-load and reducing the noise created under spring compression. Swift’s Thrust Sheets will work for most coilover systems and are offered in 60mm, 65mm and 70mm applications.
Per kit is for 2 springs. Included in the kit:
-4x Self-lubricating Thrust Sheets
-4x Stainless Steel Washer Sheets
DUE TO CONTINUED ENGINEERING ADVANCES, PRODUCT SPECIFICATION MAY CHANGE WITHOUT NOTICE.
Thrust Sheets Rates
Thrust Sheets Rates
| PART # | INNER DIAMETER | |
| Inch | mm | |
| 044101 | 2.37 | 60 |
| 544202 | 2.56 | 65 |
| 744303 | 2.76 | 70 |

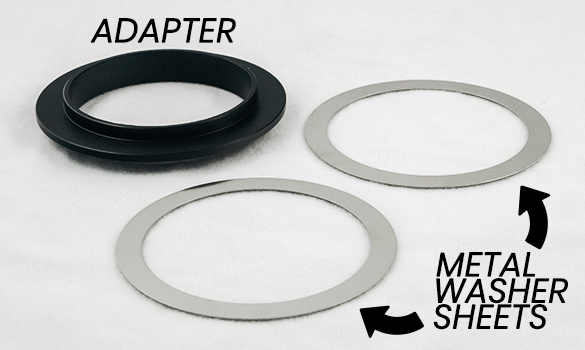

Stacked Spring Adapter Kit.
Stacked Spring Adapter Kit.
Made from the same material as our thrust sheets.
Made from the same material as our Thrust Sheets.
Reduce spring noise.
These proprietary self-lubricating sheets will allow your coilover springs to smoothly rotate around the perch under compression. This enables the load on the spring to be more evenly distributed easing the pre-load and reducing the noise created under spring compression. Swift’s Thrust Sheets will work for most coilover systems and are offered in 60mm, 65mm and 70mm applications. Used to stick flat wire spring on round wire spring.
1 kit per spring.
Kit includes:
-1x Adapter
-2x Stainless Steel Washer Sheet
Extremely light weight.
When in contact, won't harm the shockbody's threads.
Upon compression, will permit the spring to unwind as necessary.
DUE TO CONTINUED ENGINEERING ADVANCES, PRODUCT SPECIFICATION MAY CHANGE WITHOUT NOTICE.
Stacked Spring Adapter Kit
Stacked Spring Adapter Kit
| PART # | INNER DIAMETER | |
| Inch | mm | |
| SP60 | 2.37 | 60 |
| SP65 | 2.56 | 65 |
| SP70 | 2.76 | 70 |

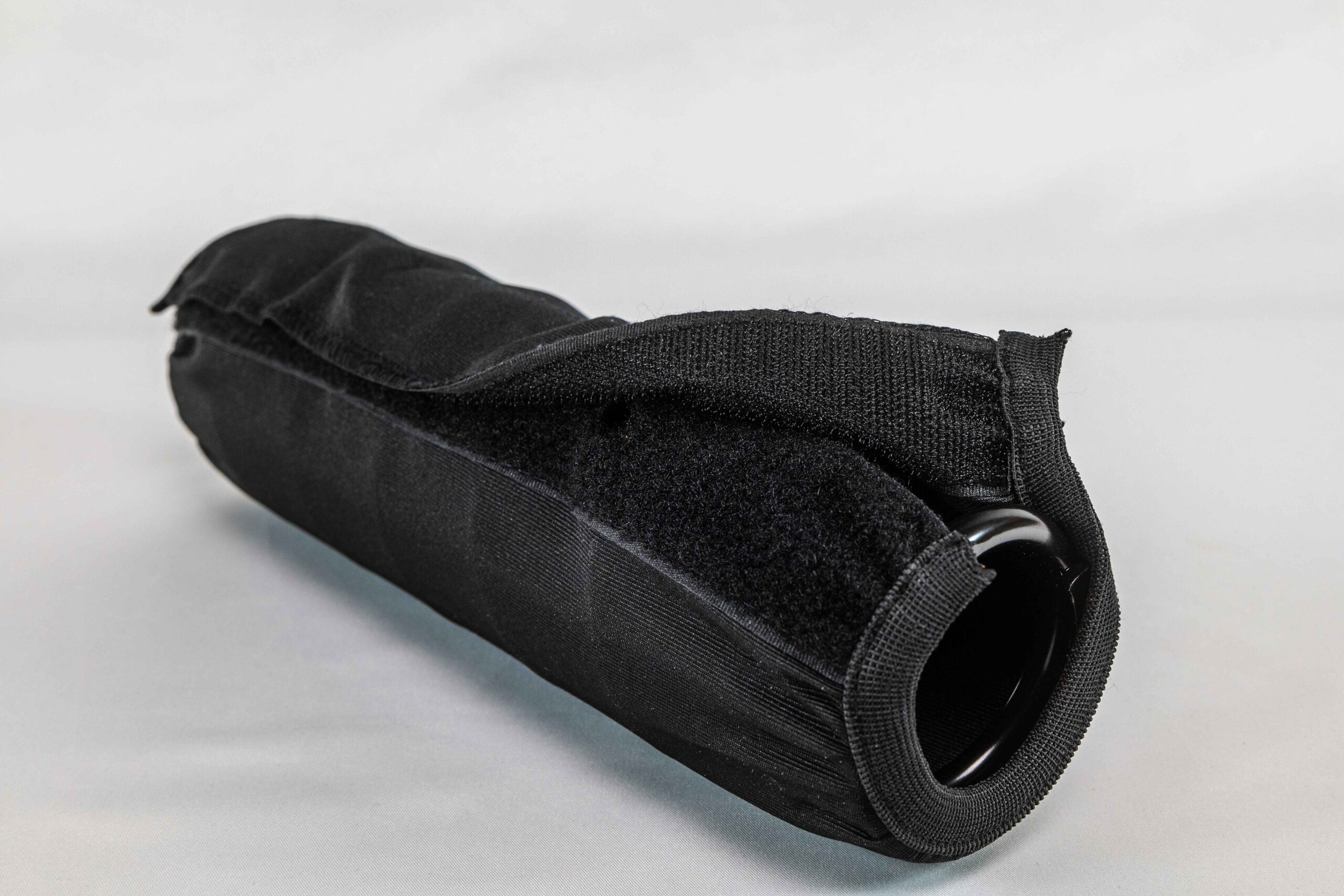

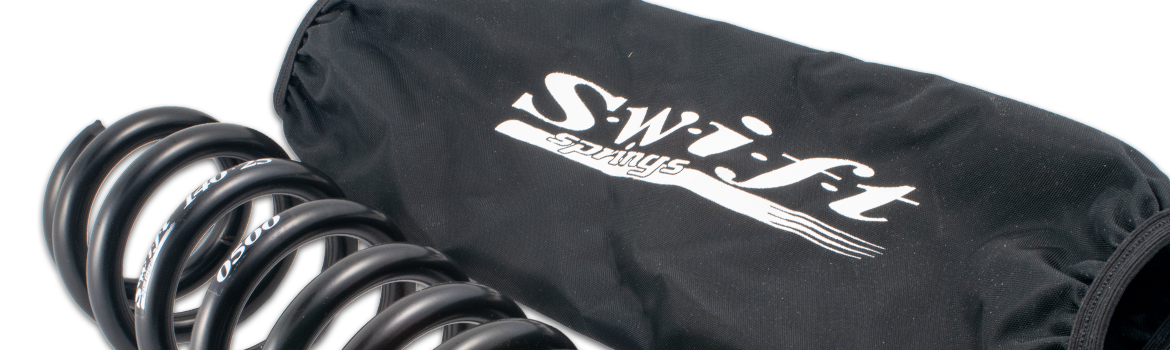

Spring Bag.
Spring Bag.
Durable Protection.
Durable Protection.
Spring and shock shaft protection.
Our spring bags are a durable cover designed to protect both the spring and the shock shaft. They have been custom made to fit the Swift Springs designs.
DUE TO CONTINUED ENGINEERING ADVANCES, PRODUCT SPECIFICATION MAY CHANGE WITHOUT NOTICE.
Spring Bags
Spring Bags
| PART # | DIMENSION |
| SSB250-120 | ID2.5" x 12" |
| SSB250-140 | ID2.5" x 14" |
| SSB250-160 | ID2.5" x 16" |
| SSB250-200 | ID2.5" x 20" |
| SSB2550-180 | ID2.5" / OD5.0" x 16"~18" |
| SSB500-130 | OD5.0" x 13" |
| SSB500-160 | OD5.0" x 16" |
| SSB500-200 | OD5.0" x 20" |

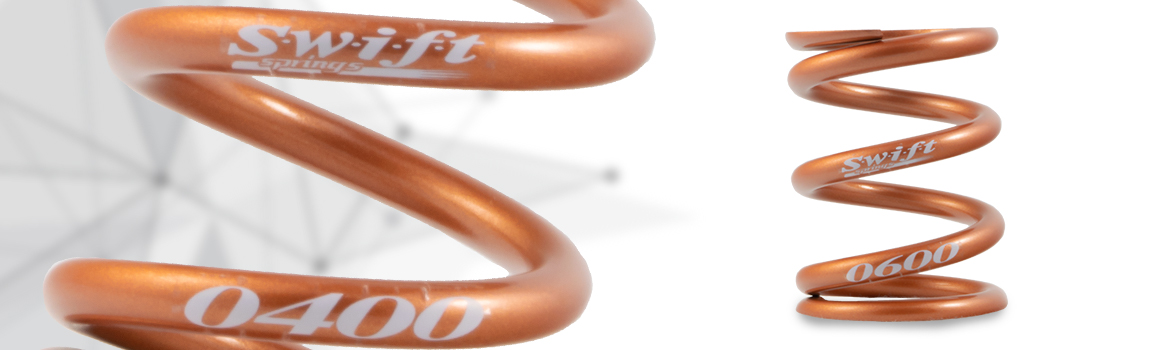

6th coil.
6th coil.
Bulletproof wire material.
Bulletproof Wire Material.
Made from the same Bulletproof wire material. Proprietary wire of 3 inches tall, 1.625 inner diameter, and rates of 400 & 600.
DUE TO CONTINUED ENGINEERING ADVANCES, PRODUCT SPECIFICATION MAY CHANGE WITHOUT NOTICE.
6th Coil
6th Coil
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |
| kgf/mm | lbs/inch | inch | inch | |
| 030-163-400 | 400 | 1.4 | 1.9 | 741 |
| 030-163-600 | 600 | 1.3 | 1.8 | 1,049 |

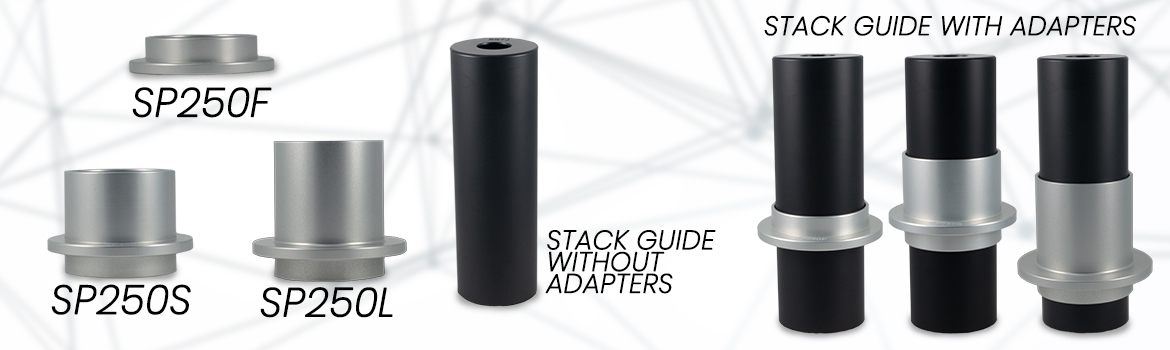

Stack Guide.
Stack Guide
created to remove any tilt from a stacked spring setup.
Created to remove any tilt from a stacked spring setup.
Maintains Stack Alignment.
Eliminates shock damage.
Smooth Transition through stroke.
Made out of a heat resistant self lubricating composite. Our Stack Guides are designed to take out any tilt from a stacked spring setup. It has shown to deliver a smoother transition of the intended spring rate, as well as eliminates any chance of shock damage. A must for anyone using a dual rate or stack setup.
DUE TO CONTINUED ENGINEERING ADVANCES, PRODUCT SPECIFICATION MAY CHANGE WITHOUT NOTICE.
Stack Guide
Stack Guide
| PART # | COILOVER |
| SST-P | PENSKE |
| SST-PF | PENSKE (Flat) |
| SST-I | INTEGRA |
| SST-J | JRI |
| SST-A | ADVANCED |
| SST-B | BILSTEIN |
| SST-F | FOX |
| SST-F36 | FOX (36mm) |
| SST-D | DIG |
| SST-G | GENESIS |
| SST-AF | AFCO |
| SST-O | OHLINS |
