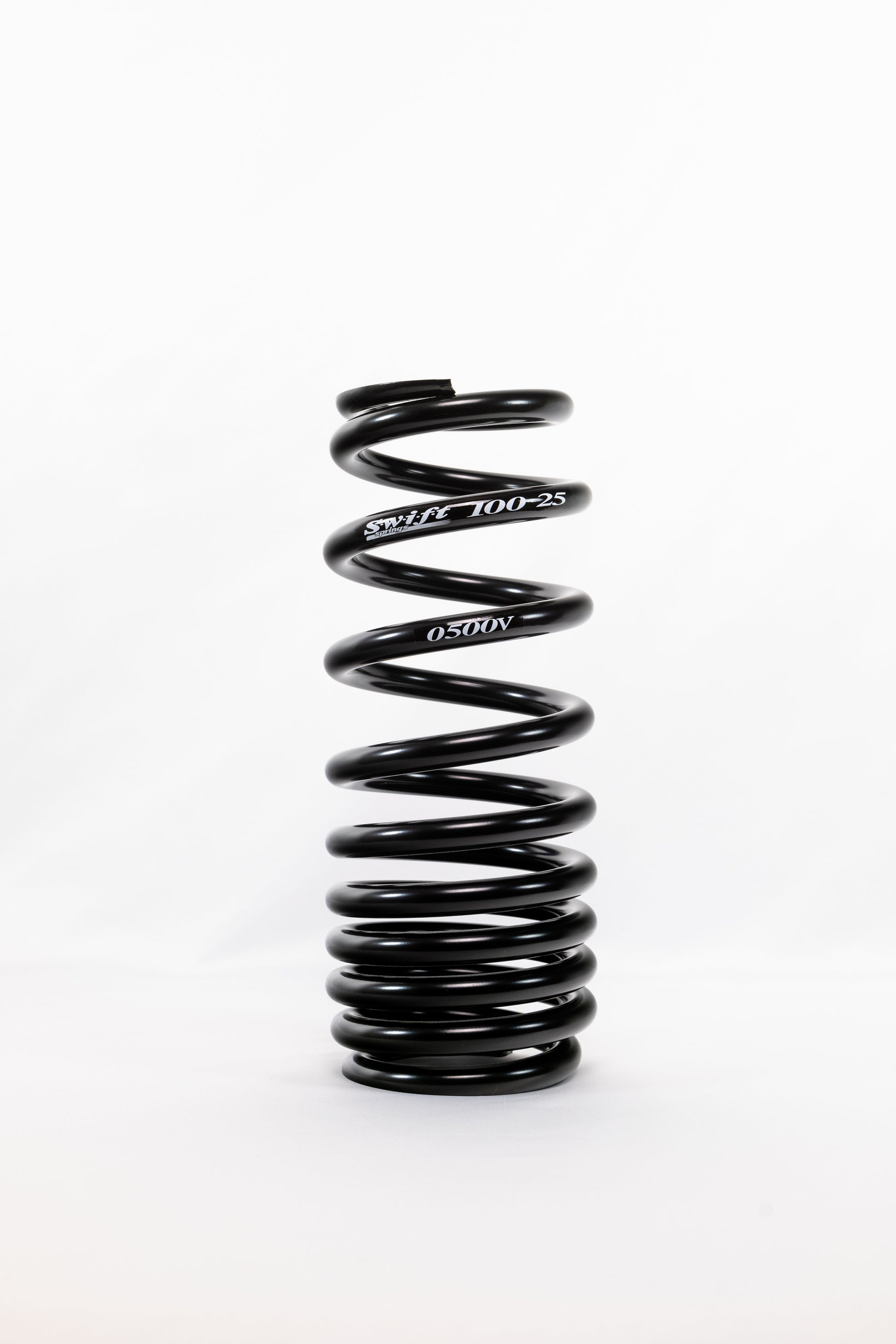

Standard Coilover Progressive Spring - 10" Length | 2.5" ID | 500lbs/inch

Swift coilover springs are mainly utilized in motorsports ranging anywhere from dirt to pavement where we've engineered for corner specific with our HS5.TW proprietary material, providing the optimal spring design to maximize your vehicle potential amplifying every advantage. Discover our wide variety of length, inner diameter and rates.

The Progressive Springs were developed to eliminate the need for spring rubbers to help keep consistency on the right-rear of a Dirt Late Model. A true progressive rate!

Progressive Type

Specifications
Part Number: 100-250-500 V

Length : 10inch
Inner Diameter : 2.5inch
Spring Rate : 200/500lbs/inch
Usable Stroke : 4.7inch
Max Stroke : 5.1inch
Max Load : 1,834lbs

Browse more 10-inch length | 2.5-inch inner diameter Standard Coilover Progressive Springs to find the right suspension setup for your build.
