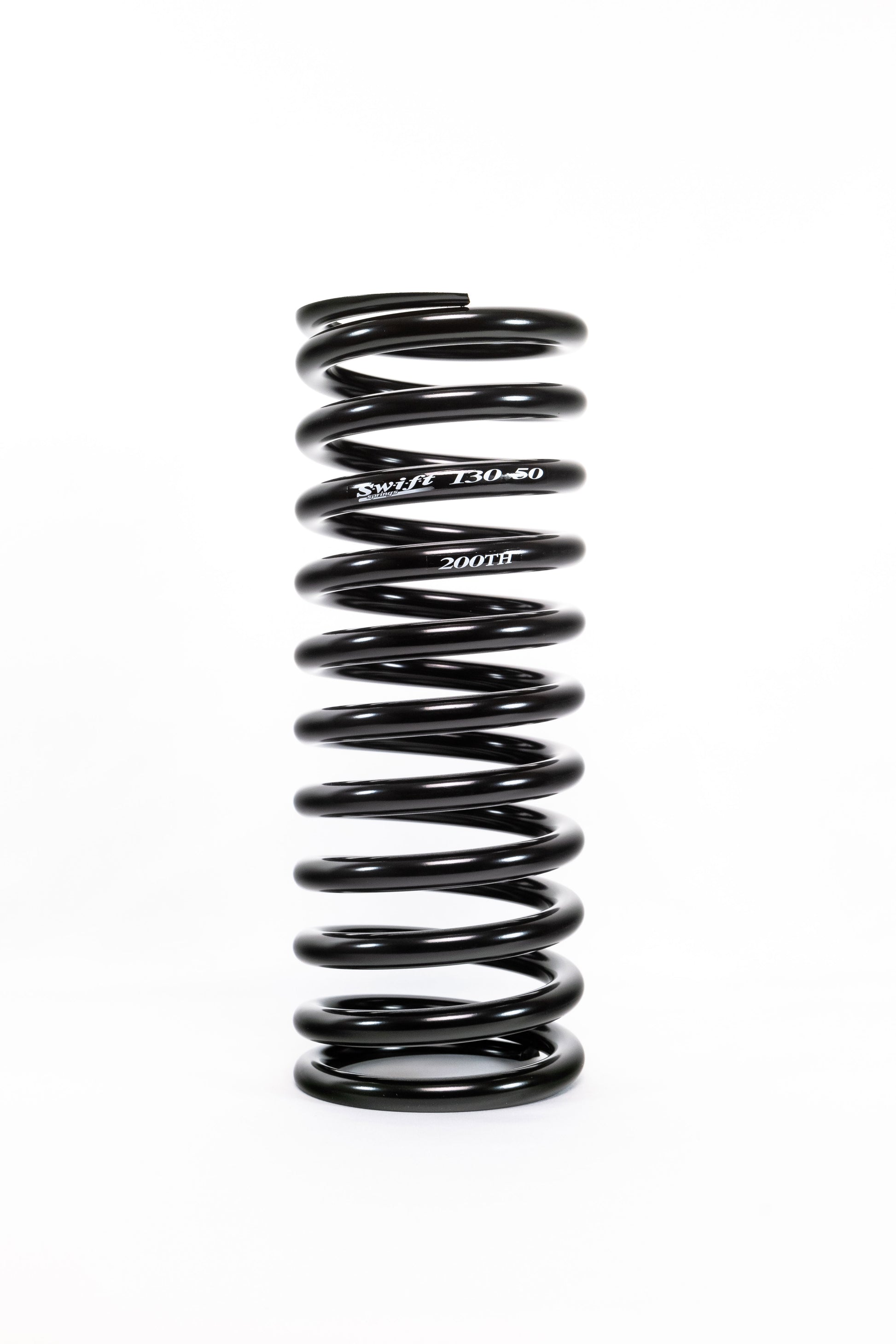

Standard Conventional Tight Helix Spring - 13" Length | 5" OD | 200lbs/inch

Swift conventional springs are mainly utilized in motorsports ranging anywhere from dirt to pavement where we've engineered for corner specific with our HS5.TW proprietary material, providing the optimal spring design to maximize your vehicle potential amplifying every advantage.

The Tight Helix design is engineered for 1" spring rubbers, equaled coil spacing with high durability and increased coil count for a quicker response!

Tight Helix Type

Specifications
Part Number: 130-500-200 TH

Length : 13inch
Outer Diameter : 5inch
Spring Rate: 200lbs/inch
Usable Stroke: 6.3inch
Max Stroke: 6.3inch
Max Load: 1,268lbs

Browse more 13in Standard Conventional Tight Helix Springs to find the right suspension setup for your build.
