Swift’s innovative designs have made us a staple in the performance tuning world. Our products are the result of over 90 years of experience in industrial spring manufacturing. Our engineers have spent countless hours developing and re-developing our springs, in order to create a product that is light, durable, and compliant, while still maintaining linear spring rates.
Quality delivering results.
Many enthusiasts will swap springs from brand to brand with the only noticeable difference being a stiffer or softer ride. But what if a springs could offer a noticeable increase in traction, smoother weight transfer, better ride quality, lower tire temperatures, and a more predictable feel? The engineers at Swift have taken that “what if” and turned it into reality.
Superior Material.
All Swift Springs are manufactured using (H5S.TW) which is far superior to silicone chrome steel and allows us to wind our springs with less coils, resulting in reduced un-sprung weight and increased stroke.

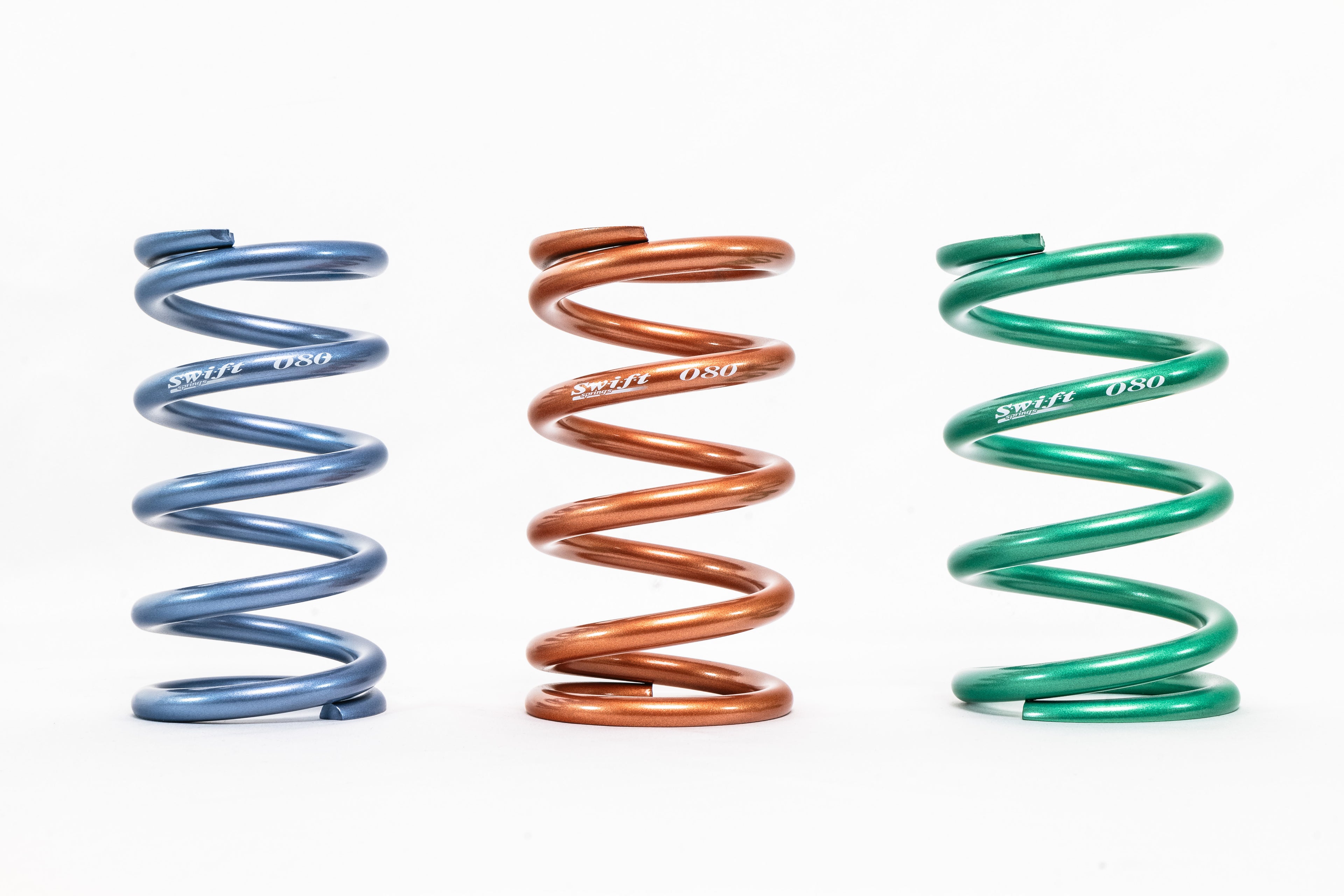

Various Rates for your preference.
Since the metric system is used widely in the sport compact and road race market, we have introduced the metric line of coilover springs to reduce confusion and to better cater to our customer’s needs.

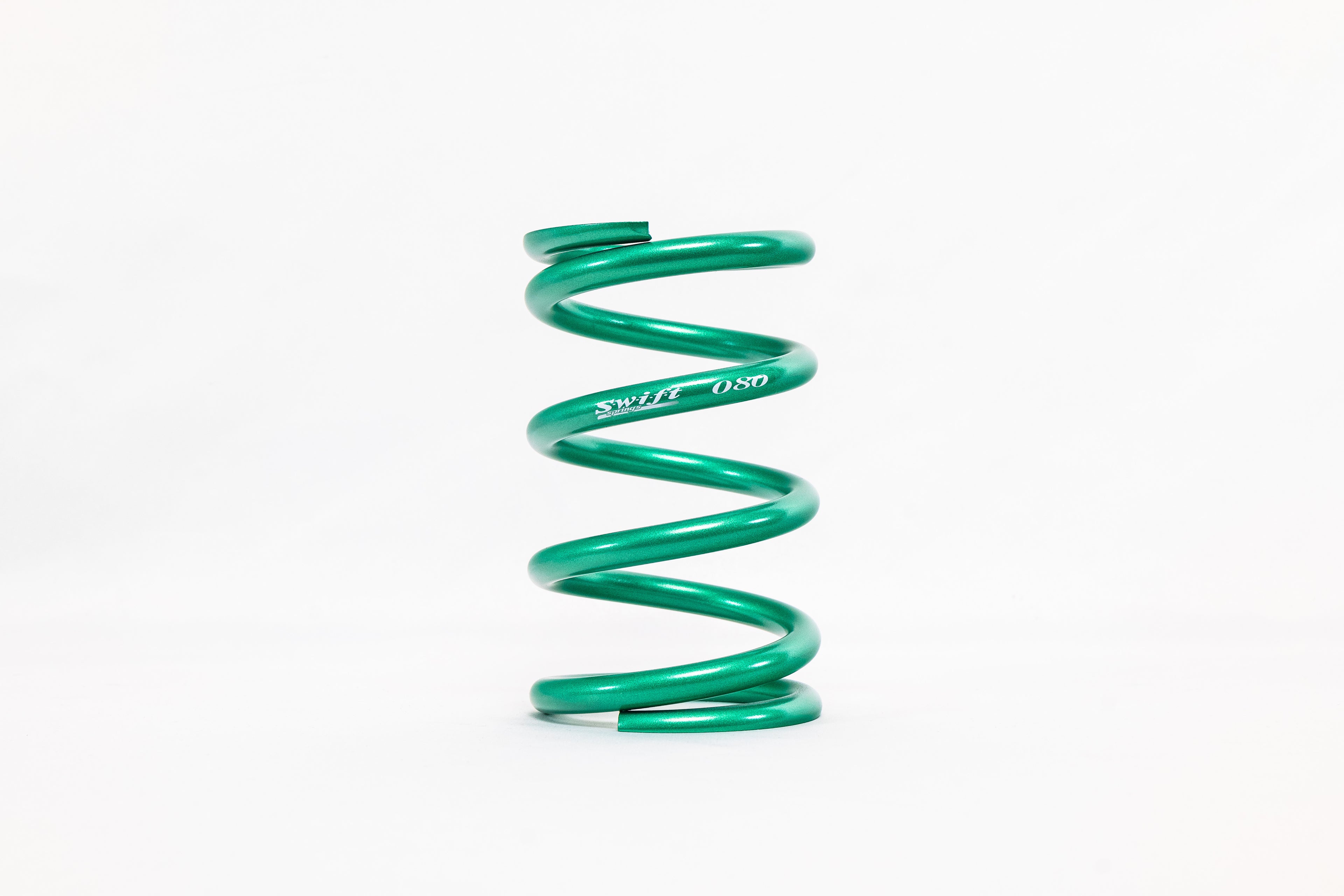

Our metric coilover springs come in various sizes with inner diameters ranging from 60mm (2.25in) to 70mm (2.75in), spring lengths from 102mm (4in) to 254mm (10in), and spring rates from 3kg (168lbs) all the way up to 50kg (2800lbs). Whether you are looking for a comfortable ride for your commuter or a more aggressive setup for your race car, we have the right spring for your application!
DUE TO CONTINUED ENGINEERING ADVANCES, PRODUCT SPECIFICATION MAY CHANGE WITHOUT NOTICE.
ID 60MM (2.37") - 4" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z60-102-180 | 18.0 | 1008 | 50 | 2.0 | 55 | 2.2 |
| Z60-102-200 | 20.0 | 1120 | 49 | 1.9 | 53 | 2.1 |
| Z60-102-220 | 22.0 | 1232 | 48 | 1.9 | 52 | 2.0 |
| Z60-102-240 | 24.0 | 1344 | 47 | 1.9 | 51 | 2.0 |
| Z60-102-260 | 26.0 | 1456 | 45 | 1.8 | 51 | 2.0 |
| Z60-102-280 | 28.0 | 1568 | 43 | 1.7 | 51 | 2.0 |
| Z60-102-300 | 30.0 | 1680 | 43 | 1.7 | 50 | 2.0 |
| Z60-102-320 | 32.0 | 1792 | 42 | 1.7 | 50 | 2.0 |
| Z60-102-340 | 34.0 | 1904 | 42 | 1.7 | 48 | 1.9 |
| Z60-102-380 | 38.0 | 2128 | 39 | 1.5 | 45 | 1.8 |
| Z60-102-420 | 42.0 | 2352 | 37 | 1.5 | 43 | 1.7 |
| Z60-102-460 | 46.0 | 2576 | 36 | 1.4 | 44 | 1.7 |
| Z60-102-500 | 50.0 | 2800 | 35 | 1.4 | 42 | 1.7 |
ID 60MM (2.37") - 5" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z60-127-080 | 8.0 | 448 | 72 | 2.8 | 79 | 3.1 |
| Z60-127-100 | 10.0 | 560 | 68 | 2.7 | 78 | 3.1 |
| Z60-127-110 | 11.0 | 616 | 68 | 2.7 | 75 | 3.0 |
| Z60-127-120 | 12.0 | 672 | 65 | 2.6 | 75 | 3.0 |
| Z60-127-130 | 13.0 | 728 | 65 | 2.6 | 73 | 2.9 |
| Z60-127-140 | 14.0 | 784 | 63 | 2.5 | 73 | 2.9 |
| Z60-127-150 | 15.0 | 840 | 63 | 2.5 | 71 | 2.8 |
| Z60-127-160 | 16.0 | 896 | 61 | 2.4 | 70 | 2.8 |
| Z60-127-170 | 17.0 | 952 | 61 | 2.4 | 69 | 2.7 |
| Z60-127-180 | 18.0 | 1008 | 59 | 2.3 | 68 | 2.7 |
| Z60-127-200 | 20.0 | 1120 | 58 | 2.3 | 66 | 2.6 |
| Z60-127-220 | 22.0 | 1232 | 55 | 2.2 | 67 | 2.6 |
| Z60-127-240 | 24.0 | 1344 | 53 | 2.1 | 66 | 2.6 |
| Z60-127-260 | 26.0 | 1456 | 53 | 2.1 | 64 | 2.5 |
| Z60-127-280 | 28.0 | 1568 | 52 | 2.0 | 62 | 2.4 |
| Z60-127-300 | 30.0 | 1680 | 51 | 2.0 | 61 | 2.4 |
| Z60-127-320 | 32.0 | 1792 | 51 | 2.0 | 59 | 2.3 |
| Z60-127-340 | 34.0 | 1904 | 49 | 1.9 | 59 | 2.3 |
| Z60-127-380 | 38.0 | 2128 | 45 | 1.8 | 55 | 2.2 |
| Z60-127-420 | 42.0 | 2352 | 45 | 1.8 | 52 | 2.0 |
| Z60-127-460 | 46.0 | 2576 | 44 | 1.7 | 49 | 1.9 |
| Z60-127-500 | 50.0 | 2800 | 41 | 1.6 | 52 | 2.0 |
ID 60MM (2.37") - 6" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z60-152-040 | 4.0 | 224 | 101 | 4.0 | 105 | 4.1 |
| Z60-152-050 | 5.0 | 280 | 94 | 3.7 | 103 | 4.1 |
| Z60-152-060 | 6.0 | 336 | 93 | 3.7 | 98 | 3.9 |
| Z60-152-070 | 7.0 | 392 | 89 | 3.5 | 96 | 3.8 |
| Z60-152-080 | 8.0 | 448 | 83 | 3.3 | 96 | 3.8 |
| Z60-152-090 | 9.0 | 504 | 78 | 3.1 | 95 | 3.7 |
| Z60-152-100 | 10.0 | 560 | 74 | 2.9 | 96 | 3.8 |
| Z60-152-110 | 11.0 | 616 | 71 | 2.8 | 96 | 3.8 |
| Z60-152-120 | 12.0 | 672 | 70 | 2.8 | 95 | 3.7 |
| Z60-152-130 | 13.0 | 728 | 69 | 2.7 | 93 | 3.6 |
| Z60-152-140 | 14.0 | 784 | 69 | 2.7 | 90 | 3.6 |
| Z60-152-150 | 15.0 | 840 | 70 | 2.8 | 86 | 3.4 |
| Z60-152-160 | 16.0 | 896 | 68 | 2.7 | 86 | 3.4 |
| Z60-152-180 | 18.0 | 1008 | 65 | 2.6 | 86 | 3.4 |
| Z60-152-200 | 20.0 | 1120 | 64 | 2.5 | 82 | 3.2 |
| Z60-152-220 | 22.0 | 1232 | 64 | 2.5 | 80 | 3.1 |
| Z60-152-240 | 24.0 | 1344 | 60 | 2.4 | 79 | 3.1 |
| Z60-152-260 | 26.0 | 1456 | 59 | 2.3 | 78 | 3.1 |
| Z60-152-280 | 28.0 | 1568 | 58 | 2.3 | 77 | 3.0 |
| Z60-152-300 | 30.0 | 1680 | 56 | 2.2 | 71 | 2.8 |
| Z60-152-320 | 32.0 | 1792 | 54 | 2.1 | 72 | 2.8 |
| Z60-152-340 | 34.0 | 1904 | 55 | 2.2 | 66 | 2.6 |
ID 60MM (2.37") - 7" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z60-178-040 | 4.0 | 224 | 118 | 4.6 | 119 | 4.7 |
| Z60-178-050 | 5.0 | 280 | 112 | 4.4 | 115 | 4.5 |
| Z60-178-060 | 6.0 | 336 | 104 | 4.1 | 115 | 4.5 |
| Z60-178-070 | 7.0 | 392 | 96 | 3.8 | 115 | 4.5 |
| Z60-178-080 | 8.0 | 448 | 93 | 3.7 | 111 | 4.4 |
| Z60-178-090 | 9.0 | 504 | 87 | 3.4 | 113 | 4.4 |
| Z60-178-100 | 10.0 | 560 | 84 | 3.3 | 112 | 4.4 |
| Z60-178-110 | 11.0 | 616 | 82 | 3.2 | 110 | 4.3 |
| Z60-178-120 | 12.0 | 672 | 80 | 3.1 | 108 | 4.3 |
| Z60-178-130 | 13.0 | 728 | 81 | 3.2 | 104 | 4.1 |
| Z60-178-140 | 14.0 | 784 | 78 | 3.1 | 104 | 4.1 |
| Z60-178-150 | 15.0 | 840 | 77 | 3.0 | 101 | 4.0 |
| Z60-178-160 | 16.0 | 896 | 75 | 3.0 | 101 | 4.0 |
| Z60-178-180 | 18.0 | 1008 | 72 | 2.8 | 102 | 4.0 |
| Z60-178-200 | 20.0 | 1120 | 70 | 2.8 | 100 | 3.9 |
| Z60-178-220 | 22.0 | 1232 | 70 | 2.8 | 93 | 3.7 |
| Z60-178-240 | 24.0 | 1344 | 68 | 2.7 | 93 | 3.6 |
ID 60MM (2.37") - 8" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z60-203-040 | 4.0 | 224 | 128 | 5.0 | 136 | 5.3 |
| Z60-203-050 | 5.0 | 280 | 125 | 4.9 | 129 | 5.1 |
| Z60-203-060 | 6.0 | 336 | 110 | 4.3 | 132 | 5.2 |
| Z60-203-070 | 7.0 | 392 | 103 | 4.1 | 133 | 5.2 |
| Z60-203-080 | 8.0 | 448 | 99 | 3.9 | 131 | 5.1 |
| Z60-203-090 | 9.0 | 504 | 95 | 3.7 | 130 | 5.1 |
| Z60-203-100 | 10.0 | 560 | 90 | 3.5 | 129 | 5.1 |
| Z60-203-110 | 11.0 | 616 | 89 | 3.5 | 128 | 5.0 |
| Z60-203-120 | 12.0 | 672 | 87 | 3.4 | 124 | 4.9 |
| Z60-203-130 | 13.0 | 728 | 86 | 3.4 | 124 | 4.9 |
| Z60-203-140 | 14.0 | 784 | 83 | 3.3 | 122 | 4.8 |
| Z60-203-160 | 16.0 | 896 | 81 | 3.2 | 119 | 4.7 |
| Z60-203-180 | 18.0 | 1008 | 77 | 3.0 | 118 | 4.6 |
| Z60-203-200 | 20.0 | 1120 | 73 | 2.9 | 118 | 4.6 |
ID 60MM (2.37") - 9" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z60-228-040 | 4.0 | 224 | 138 | 5.4 | 152 | 6.0 |
| Z60-228-050 | 5.0 | 280 | 134 | 5.3 | 145 | 5.7 |
| Z60-228-060 | 6.0 | 336 | 125 | 4.9 | 142 | 5.6 |
| Z60-228-070 | 7.0 | 392 | 122 | 4.8 | 138 | 5.4 |
| Z60-228-080 | 8.0 | 448 | 114 | 4.5 | 139 | 5.5 |
| Z60-228-090 | 9.0 | 504 | 109 | 4.3 | 139 | 5.5 |
| Z60-228-100 | 10.0 | 560 | 106 | 4.2 | 135 | 5.3 |
| Z60-228-110 | 11.0 | 616 | 100 | 3.9 | 137 | 5.4 |
| Z60-228-120 | 12.0 | 672 | 102 | 4.0 | 130 | 5.1 |
| Z60-228-130 | 13.0 | 728 | 99 | 3.9 | 127 | 5.0 |
| Z60-228-140 | 14.0 | 784 | 100 | 3.9 | 122 | 4.8 |
| Z60-228-150 | 15.0 | 840 | 98 | 3.9 | 119 | 4.7 |
| Z60-228-160 | 16.0 | 896 | 98 | 3.9 | 117 | 4.6 |
ID 65MM (2.56") - 4" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z65-102-180 | 18.0 | 1008 | 52 | 2.0 | 56 | 2.2 |
| Z65-102-200 | 20.0 | 1120 | 50 | 2.0 | 55 | 2.2 |
| Z65-102-220 | 22.0 | 1232 | 48 | 1.9 | 55 | 2.2 |
| Z65-102-240 | 24.0 | 1344 | 48 | 1.9 | 53 | 2.1 |
| Z65-102-260 | 26.0 | 1456 | 47 | 1.9 | 52 | 2.0 |
| Z65-102-280 | 28.0 | 1568 | 45 | 1.8 | 52 | 2.0 |
| Z65-102-300 | 30.0 | 1680 | 45 | 1.8 | 50 | 2.0 |
| Z65-102-320 | 32.0 | 1792 | 44 | 1.7 | 50 | 2.0 |
| Z65-102-340 | 34.0 | 1904 | 43 | 1.7 | 49 | 1.9 |
| Z65-102-380 | 38.0 | 2128 | 40 | 1.6 | 47 | 1.9 |
| Z65-102-420 | 42.0 | 2352 | 38 | 1.5 | 44 | 1.7 |
| Z65-102-460 | 46.0 | 2576 | 38 | 1.5 | 44 | 1.7 |
| Z65-102-500 | 50.0 | 2800 | 36 | 1.4 | 43 | 1.7 |
ID 65MM (2.56") - 5" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z65-127-080 | 8.0 | 448 | 72 | 2.8 | 83 | 3.3 |
| Z65-127-100 | 10.0 | 560 | 72 | 2.8 | 79 | 3.1 |
| Z65-127-120 | 12.0 | 672 | 68 | 2.7 | 78 | 3.1 |
| Z65-127-140 | 14.0 | 784 | 67 | 2.6 | 74 | 2.9 |
| Z65-127-160 | 16.0 | 896 | 64 | 2.5 | 73 | 2.9 |
| Z65-127-180 | 18.0 | 1008 | 63 | 2.5 | 70 | 2.8 |
| Z65-127-200 | 20.0 | 1120 | 63 | 2.5 | 67 | 2.6 |
| Z65-127-220 | 22.0 | 1232 | 62 | 2.4 | 65 | 2.6 |
| Z65-127-240 | 24.0 | 1344 | 60 | 2.4 | 64 | 2.5 |
| Z65-127-260 | 26.0 | 1456 | 58 | 2.3 | 63 | 2.5 |
| Z65-127-280 | 28.0 | 1568 | 56 | 2.2 | 62 | 2.4 |
| Z65-127-300 | 30.0 | 1680 | 55 | 2.2 | 62 | 2.4 |
| Z65-127-320 | 32.0 | 1792 | 53 | 2.1 | 62 | 2.4 |
| Z65-127-340 | 34.0 | 1904 | 52 | 2.0 | 61 | 2.4 |
| Z65-127-380 | 38.0 | 2128 | 47 | 1.9 | 57 | 2.2 |
| Z65-127-420 | 42.0 | 2352 | 43 | 1.7 | 62 | 2.4 |
| Z65-127-460 | 46.0 | 2576 | 42 | 1.7 | 60 | 2.4 |
| Z65-127-500 | 50.0 | 2800 | 42 | 1.7 | 55 | 2.2 |
ID 65MM (2.56") - 6" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z65-152-040 | 4.0 | 224 | 103 | 4.1 | 107 | 4.2 |
| Z65-152-050 | 5.0 | 280 | 95 | 3.7 | 105 | 4.1 |
| Z65-152-060 | 6.0 | 336 | 93 | 3.7 | 103 | 4.0 |
| Z65-152-070 | 7.0 | 392 | 89 | 3.5 | 99 | 3.9 |
| Z65-152-080 | 8.0 | 448 | 84 | 3.3 | 99 | 3.9 |
| Z65-152-090 | 9.0 | 504 | 79 | 3.1 | 100 | 3.9 |
| Z65-152-100 | 10.0 | 560 | 74 | 2.9 | 101 | 4.0 |
| Z65-152-110 | 11.0 | 616 | 72 | 2.8 | 100 | 3.9 |
| Z65-152-120 | 12.0 | 672 | 71 | 2.8 | 98 | 3.9 |
| Z65-152-130 | 13.0 | 728 | 70 | 2.8 | 96 | 3.8 |
| Z65-152-140 | 14.0 | 784 | 71 | 2.8 | 93 | 3.6 |
| Z65-152-150 | 15.0 | 840 | 69 | 2.7 | 92 | 3.6 |
| Z65-152-160 | 16.0 | 896 | 69 | 2.7 | 90 | 3.5 |
| Z65-152-180 | 18.0 | 1008 | 64 | 2.5 | 92 | 3.6 |
| Z65-152-200 | 20.0 | 1120 | 62 | 2.4 | 92 | 3.6 |
| Z65-152-220 | 22.0 | 1232 | 61 | 2.4 | 90 | 3.5 |
| Z65-152-240 | 24.0 | 1344 | 59 | 2.3 | 89 | 3.5 |
| Z65-152-260 | 26.0 | 1456 | 57 | 2.2 | 89 | 3.5 |
| Z65-152-280 | 28.0 | 1568 | 56 | 2.2 | 87 | 3.4 |
| Z65-152-300 | 30.0 | 1680 | 59 | 2.3 | 83 | 3.3 |
| Z65-152-320 | 32.0 | 1792 | 57 | 2.2 | 83 | 3.3 |
| Z65-152-340 | 34.0 | 1904 | 58 | 2.3 | 78 | 3.1 |
ID 65MM (2.56") - 7" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z65-178-040 | 4.0 | 224 | 120 | 4.7 | 122 | 4.8 |
| Z65-178-050 | 5.0 | 280 | 110 | 4.3 | 121 | 4.7 |
| Z65-178-060 | 6.0 | 336 | 106 | 4.2 | 118 | 4.6 |
| Z65-178-070 | 7.0 | 392 | 93 | 3.7 | 119 | 4.7 |
| Z65-178-080 | 8.0 | 448 | 93 | 3.7 | 117 | 4.6 |
| Z65-178-090 | 9.0 | 504 | 89 | 3.5 | 117 | 4.6 |
| Z65-178-100 | 10.0 | 560 | 86 | 3.4 | 116 | 4.6 |
| Z65-178-110 | 11.0 | 616 | 83 | 3.3 | 115 | 4.5 |
| Z65-178-120 | 12.0 | 672 | 83 | 3.3 | 111 | 4.4 |
| Z65-178-130 | 13.0 | 728 | 80 | 3.1 | 111 | 4.4 |
| Z65-178-140 | 14.0 | 784 | 80 | 3.1 | 109 | 4.3 |
| Z65-178-150 | 15.0 | 840 | 76 | 3.0 | 109 | 4.3 |
| Z65-178-160 | 16.0 | 896 | 76 | 3.0 | 107 | 4.2 |
| Z65-178-180 | 18.0 | 1008 | 73 | 2.9 | 105 | 4.1 |
| Z65-178-200 | 20.0 | 1120 | 70 | 2.8 | 106 | 4.2 |
| Z65-178-220 | 22.0 | 1232 | 68 | 2.7 | 106 | 4.2 |
| Z65-178-240 | 24.0 | 1344 | 68 | 2.7 | 101 | 4.0 |
| Z65-178-260 | 26.0 | 1456 | 67 | 2.6 | 96 | 3.8 |
| Z65-178-280 | 28.0 | 1568 | 66 | 2.6 | 91 | 3.6 |
ID 65MM (2.56") - 8" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z65-203-040 | 4.0 | 224 | 132 | 5.2 | 139 | 5.5 |
| Z65-203-050 | 5.0 | 280 | 126 | 5.0 | 133 | 5.2 |
| Z65-203-060 | 6.0 | 336 | 118 | 4.6 | 131 | 5.1 |
| Z65-203-070 | 7.0 | 392 | 115 | 4.5 | 127 | 5.0 |
| Z65-203-080 | 8.0 | 448 | 107 | 4.2 | 128 | 5.0 |
| Z65-203-090 | 9.0 | 504 | 102 | 4.0 | 128 | 5.0 |
| Z65-203-100 | 10.0 | 560 | 100 | 3.9 | 125 | 4.9 |
| Z65-203-110 | 11.0 | 616 | 92 | 3.6 | 126 | 5.0 |
| Z65-203-120 | 12.0 | 672 | 92 | 3.6 | 125 | 4.9 |
| Z65-203-130 | 13.0 | 728 | 89 | 3.5 | 125 | 4.9 |
| Z65-203-140 | 14.0 | 784 | 87 | 3.4 | 123 | 4.9 |
| Z65-203-160 | 16.0 | 896 | 87 | 3.4 | 116 | 4.6 |
| Z65-203-180 | 18.0 | 1008 | 82 | 3.2 | 118 | 4.6 |
| Z65-203-200 | 20.0 | 1120 | 79 | 3.1 | 118 | 4.7 |
| Z65-203-220 | 22.0 | 1232 | 78 | 3.1 | 109 | 4.3 |
| Z65-203-240 | 24.0 | 1344 | 77 | 3.0 | 109 | 4.3 |
ID 65MM (2.56") - 9" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z65-228-040 | 4.0 | 224 | 138 | 5.4 | 159 | 6.2 |
| Z65-228-050 | 5.0 | 280 | 127 | 5.0 | 158 | 6.2 |
| Z65-228-060 | 6.0 | 336 | 124 | 4.9 | 150 | 5.9 |
| Z65-228-070 | 7.0 | 392 | 115 | 4.5 | 152 | 6.0 |
| Z65-228-080 | 8.0 | 448 | 113 | 4.4 | 148 | 5.8 |
| Z65-228-090 | 9.0 | 504 | 112 | 4.4 | 143 | 5.6 |
| Z65-228-100 | 10.0 | 560 | 104 | 4.1 | 145 | 5.7 |
| Z65-228-120 | 12.0 | 672 | 102 | 4.0 | 137 | 5.4 |
| Z65-228-140 | 14.0 | 784 | 94 | 3.7 | 139 | 5.5 |
| Z65-228-160 | 16.0 | 896 | 92 | 3.6 | 134 | 5.3 |
ID 65MM (2.56") - 10" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z65-254-030 | 3.0 | 168 | 160 | 6.3 | 182 | 7.2 |
| Z65-254-040 | 4.0 | 224 | 157 | 6.2 | 169 | 6.7 |
| Z65-254-050 | 5.0 | 280 | 150 | 5.9 | 163 | 6.4 |
| Z65-254-060 | 6.0 | 336 | 144 | 5.7 | 158 | 6.2 |
| Z65-254-070 | 7.0 | 392 | 132 | 5.2 | 161 | 6.3 |
| Z65-254-080 | 8.0 | 448 | 125 | 4.9 | 160 | 6.3 |
| Z65-254-090 | 9.0 | 504 | 124 | 4.9 | 154 | 6.1 |
| Z65-254-100 | 10.0 | 560 | 116 | 4.6 | 157 | 6.2 |
| Z65-254-120 | 12.0 | 672 | 111 | 4.4 | 152 | 6.0 |
| Z65-254-140 | 14.0 | 784 | 100 | 3.9 | 157 | 6.2 |
ID 70MM (2.76") - 6" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z70-152-040 | 4.0 | 224 | 96 | 3.8 | 113 | 4.4 |
| Z70-152-050 | 5.0 | 280 | 95 | 3.7 | 108 | 4.3 |
| Z70-152-060 | 6.0 | 336 | 90 | 3.5 | 106 | 4.2 |
| Z70-152-070 | 7.0 | 392 | 88 | 3.5 | 103 | 4.1 |
| Z70-152-080 | 8.0 | 448 | 83 | 3.3 | 103 | 4.1 |
| Z70-152-090 | 9.0 | 504 | 83 | 3.3 | 99 | 3.9 |
| Z70-152-100 | 10.0 | 560 | 80 | 3.1 | 98 | 3.9 |
| Z70-152-120 | 12.0 | 672 | 78 | 3.1 | 94 | 3.7 |
| Z70-152-140 | 14.0 | 784 | 74 | 2.9 | 93 | 3.6 |
| Z70-152-160 | 16.0 | 896 | 72 | 2.8 | 90 | 3.6 |
| Z70-152-180 | 18.0 | 1008 | 69 | 2.7 | 89 | 3.5 |
| Z70-152-200 | 20.0 | 1120 | 65 | 2.6 | 89 | 3.5 |
ID 70MM (2.76") - 7" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z70-178-040 | 4.0 | 224 | 112 | 4.4 | 130 | 5.1 |
| Z70-178-050 | 5.0 | 280 | 109 | 4.3 | 125 | 4.3 |
| Z70-178-060 | 6.0 | 336 | 106 | 4.2 | 121 | 4.8 |
| Z70-178-070 | 7.0 | 392 | 100 | 3.9 | 120 | 4.7 |
| Z70-178-080 | 8.0 | 448 | 101 | 4.0 | 114 | 4.5 |
| Z70-178-090 | 9.0 | 504 | 93 | 3.7 | 116 | 4.6 |
| Z70-178-100 | 10.0 | 560 | 92 | 3.6 | 113 | 4.5 |
| Z70-178-120 | 12.0 | 672 | 87 | 3.4 | 111 | 4.4 |
| Z70-178-140 | 14.0 | 784 | 82 | 3.2 | 109 | 4.3 |
| Z70-178-160 | 16.0 | 896 | 79 | 3.1 | 107 | 4.2 |
| Z70-178-180 | 18.0 | 1008 | 77 | 3.0 | 105 | 4.1 |
| Z70-178-200 | 20.0 | 1120 | 73 | 2.9 | 105 | 4.1 |
ID 70MM (2.76") - 8" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z70-203-040 | 4.0 | 224 | 129 | 5.1 | 150 | 5.9 |
| Z70-203-050 | 5.0 | 280 | 127 | 5.0 | 144 | 5.7 |
| Z70-203-060 | 6.0 | 336 | 117 | 4.6 | 137 | 5.4 |
| Z70-203-070 | 7.0 | 392 | 115 | 4.5 | 137 | 5.4 |
| Z70-203-080 | 8.0 | 448 | 105 | 4.1 | 132 | 5.2 |
| Z70-203-090 | 9.0 | 504 | 104 | 4.1 | 135 | 5.3 |
| Z70-203-100 | 10.0 | 560 | 100 | 3.9 | 130 | 5.1 |
| Z70-203-120 | 12.0 | 672 | 96 | 3.8 | 130 | 5.1 |
| Z70-203-140 | 14.0 | 784 | 94 | 3.7 | 125 | 4.9 |
| Z70-203-160 | 16.0 | 896 | 92 | 3.6 | 120 | 4.7 |
| Z70-203-180 | 18.0 | 1008 | 89 | 3.5 | 115 | 4.5 |
| Z70-203-200 | 20.0 | 1120 | 87 | 3.4 | 113 | 4.4 |
ID 70MM (2.76") - 9" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z70-228-040 | 4.0 | 224 | 136 | 5.4 | 164 | 6.5 |
| Z70-228-050 | 5.0 | 280 | 127 | 5.0 | 162 | 6.4 |
| Z70-228-060 | 6.0 | 336 | 125 | 4.9 | 155 | 6.1 |
| Z70-228-070 | 7.0 | 392 | 120 | 4.7 | 152 | 6.0 |
| Z70-228-080 | 8.0 | 448 | 117 | 4.6 | 148 | 5.8 |
| Z70-228-090 | 9.0 | 504 | 116 | 4.6 | 143 | 5.6 |
| Z70-228-100 | 10.0 | 560 | 113 | 4.4 | 140 | 5.5 |
| Z70-228-120 | 12.0 | 672 | 110 | 4.3 | 133 | 5.2 |
| Z70-228-140 | 14.0 | 784 | 105 | 4.1 | 130 | 5.1 |
ID 70MM (2.76") - 10" Length
| PART # | SPRING RATE | USABLE STROKE | MAX STROKE | |||
| kgf/mm | lbs/inch | mm | inch | mm | inch | |
| Z70-254-030 | 3.0 | 168 | 163 | 6.4 | 185 | 7.3 |
| Z70-254-040 | 4.0 | 224 | 147 | 5.8 | 182 | 7.2 |
| Z70-254-050 | 5.0 | 280 | 140 | 5.5 | 177 | 7.0 |
| Z70-254-060 | 6.0 | 336 | 134 | 5.3 | 173 | 6.8 |
| Z70-254-070 | 7.0 | 392 | 131 | 5.2 | 167 | 6.6 |
| Z70-254-080 | 8.0 | 448 | 125 | 4.9 | 166 | 6.5 |
| Z70-254-090 | 9.0 | 504 | 121 | 4.8 | 163 | 6.4 |
| Z70-254-100 | 10.0 | 560 | 120 | 4.7 | 158 | 6.2 |
| Z70-254-120 | 12.0 | 672 | 116 | 4.6 | 151 | 5.9 |
